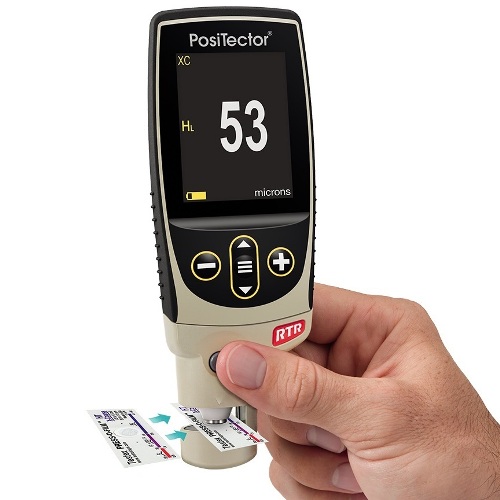

DeFelsko PosiTector RTR H replica tape reader

/images/product/DeFelsko PosiTector RTR H replica tape reader

Electronic Surface Profile Gage for Blasted Steel and Textured Coatings
Digital spring micrometers measure and record surface profile parameters using Testex Press-O-Film™ replica tape—producing a more accurate peak-to-valley height measurement.

  • Ready to measure—no calibration adjustment required for most applications
  • Produces a more accurate peak-to-valley height measurement (HL)
  • Statistics mode continually displays/updates average, standard deviation, min/max, and number of readings while measuring
  • Screen Capture—save 100 screen images for record keeping and review
  • Impact resistant color touchscreen with keypad for quick menu navigation
  • Weatherproof, dustproof, and water-resistant—IP65-rated enclosure
  • PosiTector interchangeable platform—attach any PosiTector probe to gage body
  • USB, WiFi, and Bluetooth connectivity to PosiSoft PC, Mac, and Smartphone software
  • Certificate of Calibration and Two year warranty

Conforms to ASTM D4417, ISO 8503-5, NACE SP0287, SSPC-PA 17, SSPC-SP5, SP6, SP10, SP11-87T, and others

Standard Models (1)
Includes ALL features as shown above plus...

Storage of 1,000 readings per probe—stored readings can be viewed or downloaded

Advanced Models (3)
Includes ALL features as shown above plus...

  • Storage of 250,000 readings in up to 1,000 batches
  • Live graphing of measurement data
  • Touchscreen keyboard for quickly renaming batches, adding notes, and more
  • WiFi technology wirelessly synchronizes with PosiSoft.net and downloads software updates
  • Bluetooth 4.0 for data transfer to a mobile device running the PosiTector App or optional portable printer. BLE API available for integration into third-party software
  • Integrate with third-party software, drones, ROVs, PLCs, and robotic devices using several industry-standard communication protocols
