Hardness Testers (Portable)

Portable metal hardness testers provide fast and accurate on site measurements. The DMV UK range of hardness testers includes dynamic rebound (Leeb), Rockwell and UCI (Ultrasonic Contact Impedance) type testers and a selection of probes to cover a wide range of applications. Hardness values are displayed in various scales including Vickers, Brinell and Rockwell.

Showing 8 products
MH180 Metal Hardness Tester
our price £765.00

This portable hardness tester uses the dynamic Leeb rebound technique, has a wide measuring range and is suitable for most metals. Displays readings in hardness scales HRB, HRC, HV, HB, HS, HL.

MH600 Metal Hardness Tester
our price £995.00

The MH600 is an advanced Leeb type portable hardness tester with special features including : colour TFT display, automatic detection of probe direction, IP65 protection rating & high / low tolerance alarm. Software and cable are included.

dynaROCK III Leeb Hardness Tester (made in Germany)
our price £1,695.00

The dynaROCK III works according to the Leeb rebound hardness test method for metallic materials. It is made in Germany by BAQ GmbH. Supplied with test block, impact device D, data transfer software and test certificate.

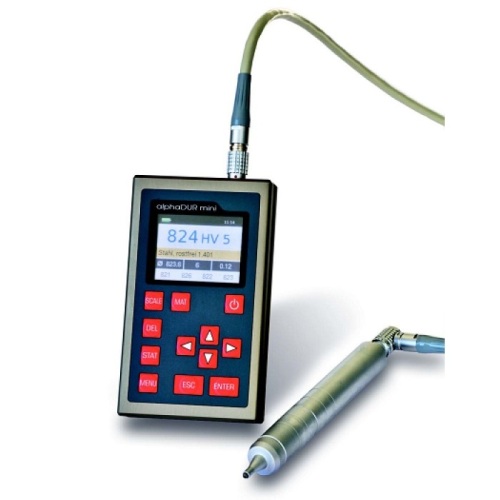

alphaDUR mini II UCI hardness tester (made in Germany)
from £2,495.00

The alphaDUR mini II UCI hardness tester provides fast and accurate test results and is useful for measuring the hardness of test objects that are too small or thin for other types of portable hardness tester. It is made in Germany by BAQ GmbH.

Equotip 540 & 550 Metal Hardness Testers
from £4,080.00

The Equotip 540 & 550 are rugged & versatile portable hardness testers, suitable for most metals. They offer unmatched ease of operation & have a large and clear display integrated in a specially designed housing for on-site usage in harsh environments.

Equotip Piccolo 2 / Bambino 2 Metal Hardness Tester
from £2,505.00

portable testers with the best repetition rate and the greatest accuracy on the market. Equotip Bambino 2 is particularly suitable for quick and easy on-site hardness checks. Equotip Piccolo 2 offers advanced measurement statistics and Piccolink software

Barcol Hardness Tester
from £780.00

The PosiTector BHI Barcol Hardness Impressor measures the hardness of soft metals such as aluminum, aluminum alloys, copper, brass, and other materials such as harder plastics, and fibre-reinforced plastic

Portable Hardness Tester Guide

There are three main types of portable metal hardness tester available .... Dynamic Rebound (Leeb), Rockwell and Ultrasonic Contact Impedance (UCI).

Dynamic rebound testers project a spring loaded impact body with a spherical tip towards the test object at a defined velocity. The impact creates a plastic deformation of the surface which causes the impact body to rebound at a slower speed. This loss of velocity is measured by the passage of the impact device through a magnetic coil and this produces a Leeb hardness value (HLD) which the instrument can convert to hardness scales HRB, HRC, HV, HB etc. Modern portable rebound testers can produce fast and accurate results and are particularly suitable for use on solid heavy components, coarse grained materials and thick walled tubing.

Rockwell hardness is a static test where the penetration depth of a diamond cone indenter is measured at 2 defined loads. It can be used on a wide variety of applications such as small, light, thin, walled or tubular test objects, and large and heavy objects where the surface roughness and grain size are small enough. Test objects need to be least 10 times the thickness of the indenter penetration depth.

UCI hardness testers are not restricted to large mass items and can be used on smaller, thinner walled components and on finer grained materials. These instruments apply a known force to a Vickers diamond which is attached to the end of a metal rod which oscillates longitudinally. The diagonals of the resulting indentation are evaluated electronically by measuring the ultrasonic frequency shift which is proportional to the size of the indentation. The difference in ultrasonic vibration frequency is then converted to hardness scales such as Vickers, Rockwell or Brinell etc.
